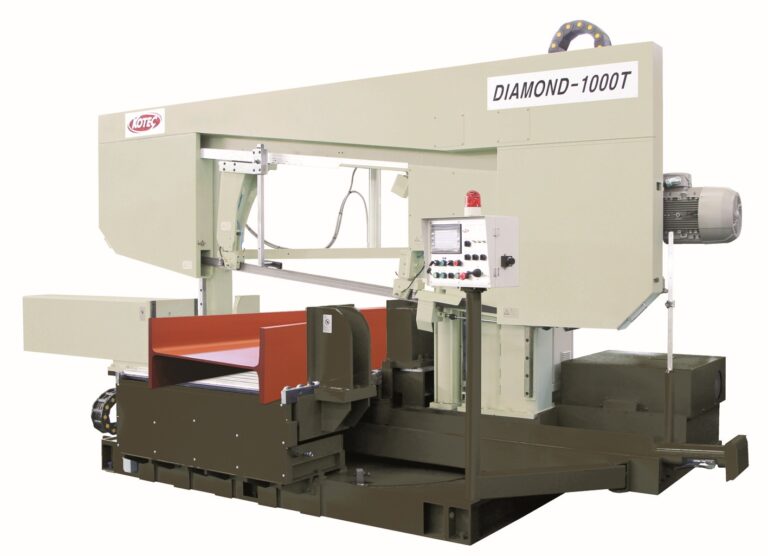

The Diamond-1000T is a strong and reliable bandsawing machine designed by KOTEC to cut large steel beams and profiles with speed and precision. It's part of the T Series, built for heavy-duty work in construction and steel manufacturing.
Core Capabilities
Cuts at Angles
The machine can cut straight or at angles up to 45°, helping you make clean, angled cuts easily for complex steel profiles.
Smooth and Stable Cutting
Uses a special guide system to keep the saw blade steady during operation, giving cleaner and more accurate cuts every time.
Smart Controls
Automatically adjusts cutting speed and stops at the right point for better safety and industrial efficiency.
Applications
The Diamond-1000T is a great choice if you need a dependable, easy-to-use machine for cutting big steel materials accurately and efficiently. It's perfectly suited for heavy-duty construction and large-scale industrial manufacturing.
Heavy-Duty Performance
Built for longevity and precision, the Diamond-1000T delivers consistent results even in the most demanding environments. Its robust construction ensures minimal maintenance and maximum uptime for your fabrication line.
Get a QuoteDeep Dive Specifications
| Item | Details |
|---|---|
| Model Name | Diamond-1000T |
| Round Material Cutting | Ø600 mm (Straight & Angled) |
| Square Material Cutting | Straight: 1,000 × 600 mm Angled: 600 × 600 mm |
| Bundle Cutting Size | Straight: 1,000 × 430 mm Angled: 600 × 430 mm |
| Blade Speed | 20 – 90 meters per minute |
| Blade Size | 54 mm wide × 1.6 mm thick × 8,800 mm long |
| Material Feed Length | 320 mm |
| Machine Size | 4,800 × 2,250 × 2,550 mm |
| Machine Weight | 6,850 kg |
