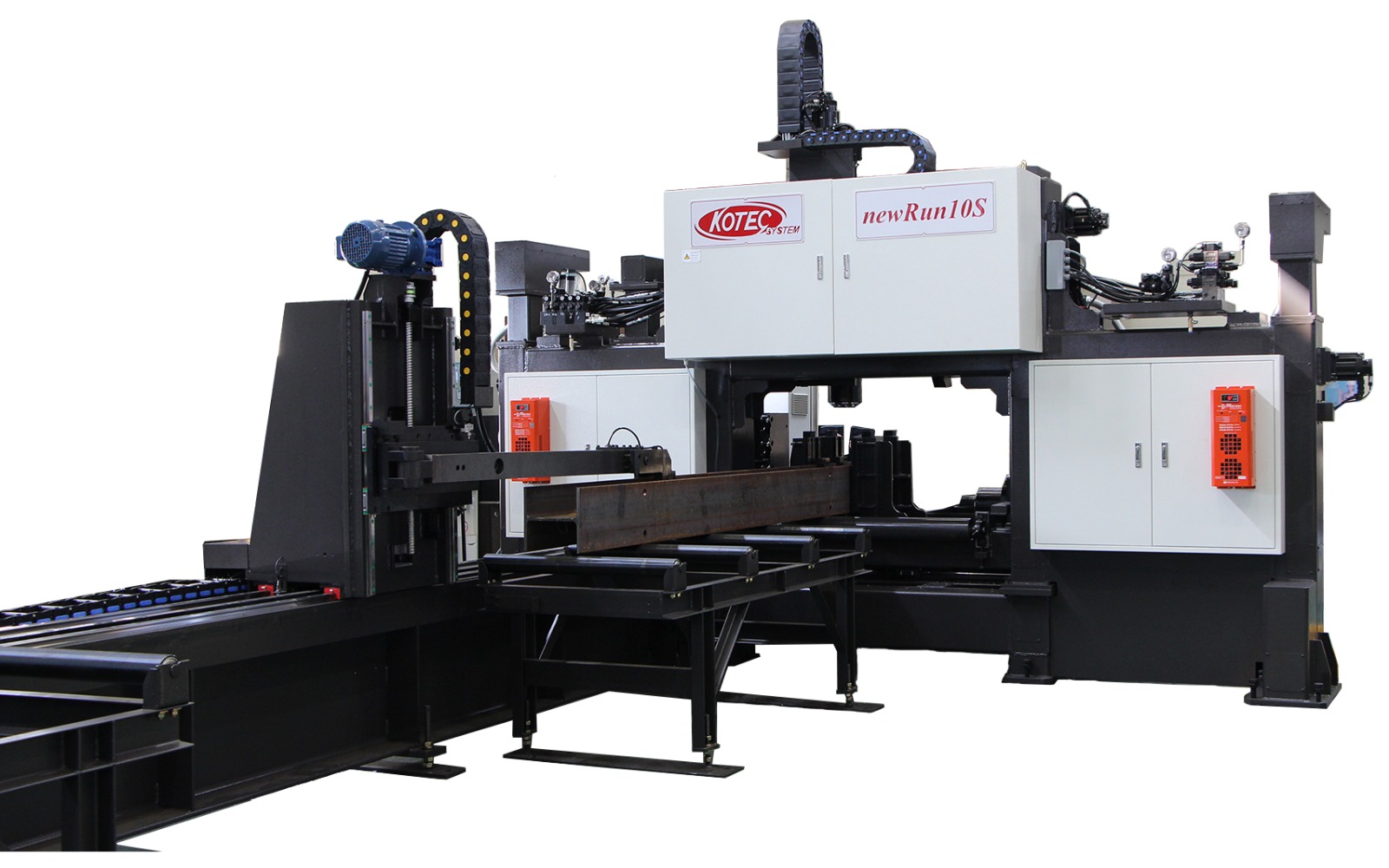

The newRun10S is a powerful and reliable CNC beam drilling solution from KOTEC’s renowned S-Series. Built for heavy-duty structural steel processing, this machine delivers speed, precision, and durability, making it an excellent choice for medium to large-scale fabrication facilities.
Key Features
Three-Axis Simultaneous Drilling
The newRun10S is equipped with three independent spindles that allow simultaneous drilling on the top, left, and right surfaces of structural beams, significantly reducing processing time.
Wide Profile Compatibility
Supports a broad range of materials including H-beams, channels, angles, and box beams, making it adaptable to various steel construction needs.
Heavy-Duty Spindle Motors
Fitted with robust BT-50 built-in spindle motors (3 units), optimized for processing larger profiles and tougher materials.
Large Drill Capacity
Accepts drill diameters from Ø12 mm up to Ø40 mm using oil hole carbide drills for fast, clean, and accurate holes.
User-Friendly System
A simplified operating interface allows for quick setup and programming. The system also supports pre-loaded common drilling patterns to further reduce operator workload.
TEKLA & AutoCAD Compatibility
With an optional interface module, users can import CAD file interface, DXF file directly, seamlessly integrating design and production workflows.
Why Choose the newRun10S?
If your operation demands consistent performance, precise drilling, and efficient handling of large beam sizes, the newRun10S delivers the technology and flexibility to meet your production goals.
Industrial Applications
The newRun10S is perfectly suited for a wide range of applications, including steel structure manufacturing, bridge and infrastructure development, pre-engineered building fabrication, and industrial plant construction. Its robust design and advanced features make it a reliable choice for these critical and demanding industries.
Get a QuoteTechnical Specifications
| Specification | Details |
|---|---|
| Model Name | newRun10S |
| Material Size Range |
H-Beam: 125 × 60 ~ 1,000 × 500 mm Channel: 150 × 65 ~ 380 × 100 mm Angle: 125 × 125 ~ 300 × 300 mm Box Beam: 125 × 125 ~ 500 × 500 mm |
| Maximum Processing Length | Up to 13,000 mm (customizable) |
| Drill Bit Diameter | Ø12 ~ Ø40 mm |
| Spindle Type & Quantity | BT-50 Built-in Motor, 3 Spindles |
| Automatic Tool Changer | Not included on standard model (optional) |
| Feeding System | Carriage type with AC Servo Motor (Max Speed: 30 m/min) |
| Feeding Accuracy | High-precision with Double LM (Linear Motion) guides and ball screws |
| Machine Dimensions (W × L × H) | 4,600 × 1,750 × 2,950 mm (excluding carriage) |
| Machine Weight | Approx. 7,900 kg |
