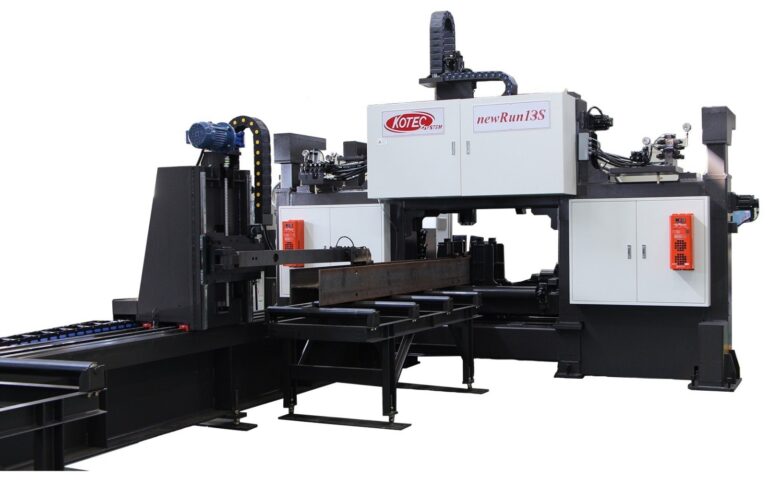

The newRun13S is a robust and high-precision CNC beam drilling machine from KOTEC's S-Series, designed to meet the demands of large-scale structural steel fabrication. With its advanced features and versatile capabilities, it ensures efficient and accurate processing of various steel profiles.
Key Features
Three-Side Drilling Capability
Equipped with three independent spindles, the newRun13S allows simultaneous drilling on the top, left, and right sides of beams, significantly reducing processing time.
Wide Material Compatibility
Handles a broad range of structural steel profiles, including H-beams, channels, angles, and box beams, accommodating web sizes from 150 mm to 1,300 mm and flange sizes up to 600 mm.
High-Speed Drilling
Utilizes oil hole, tungsten carbide drills ranging from Ø12 to Ø40 mm, ensuring rapid and precise hole processing.
Advanced Spindle System
Features three built-in spindle motors (BT-40), each dedicated to one axis, providing consistent drilling performance across all sides.
Automatic Tool Changer (ATC)
Includes an auto tool change system with six tool sets per axis (top, left, right), minimizing downtime and enhancing productivity.
Efficient Material Handling
Equipped with a carriage-type material feeding system powered by an AC servo motor, achieving speeds up to 30 m/min for fast and accurate positioning.
User-Friendly Interface
Simplified data input methods with common drilling patterns available, facilitating easy operation and quick setup.
TEKLA & AutoCAD Compatibility
Optional interface program allows direct import of CAD file interface, DXF file, streamlining the workflow from design to production.
Flexible & Accurate
Thanks to its flexibility and accuracy, this machine is a great choice for any business that needs to drill steel parts quickly and precisely.
Industrial Applications
The newRun13S is perfect for a variety of heavy-duty applications, such as making steel structures, constructing pre-designed (PEB) steel buildings, working on bridges and other large construction projects, and manufacturing large machines and equipment. Its powerful performance and adaptability make it an essential tool in these industrial sectors.
Get a QuoteTechnical Specifications
| Specification | Details |
|---|---|
| Model | newRun13S |
| Material Processing Capacity |
H-Beam: 150 × 75 ~ 1,300 × 500 mm Channel: 150 × 75 ~ 380 × 100 mm Angle: 150 × 150 ~ 300 × 300 mm Box Beam: 150 × 150 ~ 400 × 400 mm |
| Max. Processing Length | 13,000 mm (Adjustable) |
| Max. Drill Bit Capacity | Ø12 ~ Ø40 mm (Oil Hole, Tungsten Carbide Drill) |
| Drill Spindle Motor | Built-in Spindle Motor (BT-40) – 3 sets |
| Auto Tool Change System | 6 tool sets per axis (Top, Left, Right) |
| Drill Feeding Mechanism | AC Servo Motor & Double LM (Linear Motion) / Ball Screw |
| Material Feeding System | Carriage type (Max Speed: 30 m/min) |
| Machine Dimensions (W × L × H) | 5,000 × 1,850 × 2,950 mm (without Carriage) |
| Machine Weight | 11,000 kg |
| Data Input | Common patterns available |
| Optional Features | TEKLA (.NC1) File Interface Program |
