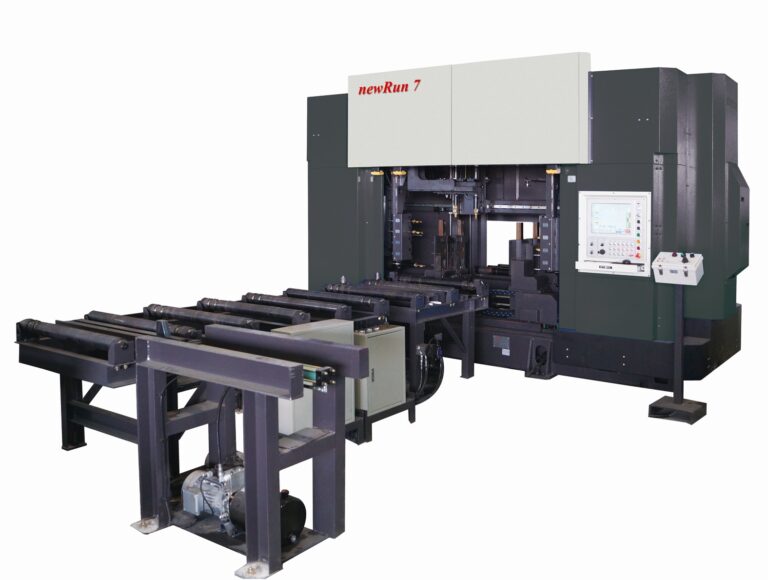

The newRun7s is a high-performance CNC beam drilling machine from KOTECSYSTEM S-Series, engineered for precision and efficiency in structural steel fabrication. Designed to handle a variety of steel profiles, it offers advanced features to streamline your production process.
Key Features
Versatile Drilling
Capable of drilling on three sides (top, left, right) of various structural steel profiles, including H-beams, channels, angles & box beams.
High-Speed Processing
Utilizes oil hole, tungsten carbide drills ranging from Ø10 to Ø32 mm for rapid and precise hole processing at industrial speeds.
Advanced Spindle System
Features three built-in spindle motors (BT-40), each dedicated to one axis, ensuring consistent performance across all sides.
Smart Interface
Simplified data input with common drilling patterns. TEKLA (.NC1) and AutoCAD (.DXF) compatibility for streamlined workflow.
Material Handling
Carriage-type material feeding powered by AC servo motors, reaching 30 m/min for fast and accurate positioning.
ATC System (Optional)
Automatic Tool Changer with four tool sets per axis (top, left, right), minimizing downtime and maximizing productivity.
Applications
The newRun7S is an ideal solution for various industrial applications, including structural steel fabrication, pre-engineered building steel structural fabrication, bridge and infrastructure projects, as well as heavy machinery and equipment production. Its versatility and high-performance capabilities make it a valuable asset across these demanding sectors.
Its versatility and precision make it a valuable asset for any operation requiring efficient and accurate drilling of steel profiles.
Technical Specifications
| Specification | Details |
|---|---|
| Model | newRun7S |
| Material Processing Capacity |
H-Beam: 100×50 ~ 700×400 mm Channel: 75×40 ~ 380×100 mm Angle: 65×65 ~ 300×300 mm Box Beam: 65×65 ~ 400×400 mm (optional) |
| Max. Processing Length | 13,000 mm (Adjustable) |
| Max. Drill Bit Capacity | Ø10 ~ Ø32 mm (Oil Hole, Tungsten Carbide Drill) |
| Drill Spindle Motor | (BT-40) – 3 sets |
| Drill Feeding Mechanism | AC Servo Motor & Double LM (Linear Motion) / Ball Screw |
| Material Feeding System | Carriage type (Max Speed: 30 m/min) |
| Machine Dimensions (W×L×H) | 4,200 × 1,750 × 2,900 mm (without Carriage) |
| Machine Weight | 6,200 kg |
| Optional Features | TEKLA (.NC1) File Interface Program, ATC System |
