The PSD Series by Kotecsystem Pvt Ltd offers powerful and precise drilling solutions for steel plates of various sizes. These machines are designed to meet the needs of industries like construction, manufacturing, and heavy machinery, where accurate hole drilling is critical.
Key Benefits
Fast and Accurate Drilling
Powerful motors ensure quick and precise hole-making.
Easy to Use
Windows-based controls allow simple program input via USB or CAD files.
Flexible Tool Change
Optional automatic tool changer supports up to 4 tools, saving time.
Wide Range of Sizes
Different models handle various plate dimensions and thicknesses.
Typical Applications
The PSD Series combines strong construction with advanced features to help your business drill steel plates quickly and with great accuracy across multiple sectors.
Building & Bridge Fabrication
PEB Manufacturing
Heavy Machinery Parts
Infrastructure Projects

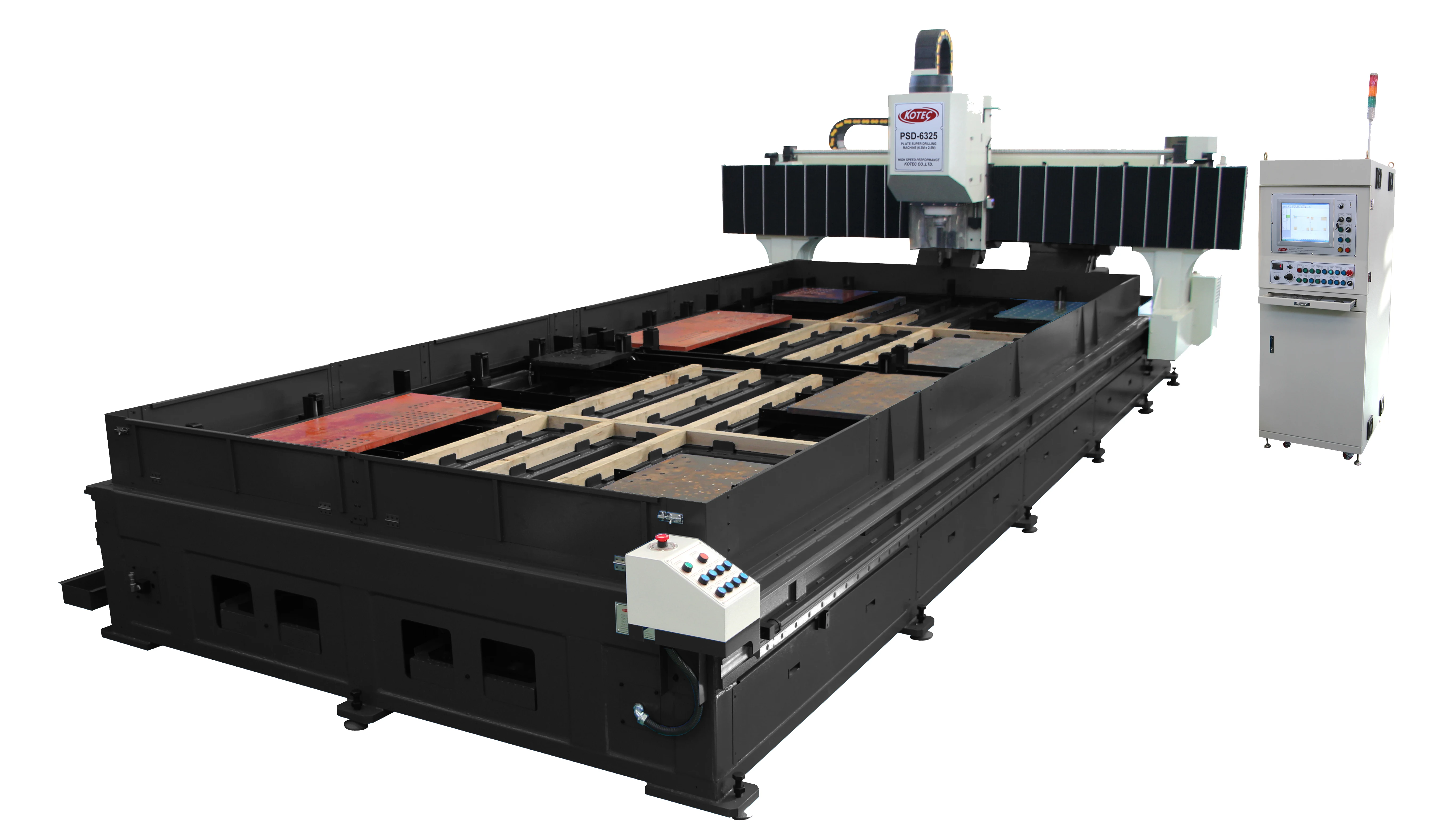

PSD Series Model Comparison
| Model | Max Plate Size (mm) | Max Drill Diameter (mm) | Machine Type | Tool Changer | Machine Weight (kg) | Suitable For |
|---|---|---|---|---|---|---|
| PSD-0618 | 600 x 1800mm | Ø50 | Semi-Gantry | Manual / Optional ATC | 4,500 | Small to medium steel plate drilling |
| PSD-2010 | 2,000 × 1,000 | Ø50 | Gantry | Manual / Optional ATC | 5,400 | Medium steel plates |
| PSD-3010 | 3,000 × 1,000 | Ø50 | Gantry | Manual / Optional ATC | 6,200 | Medium to large steel plates |
| PSD-4015 | 4,000 × 1,500 | Ø50 | Gantry | Manual / Optional ATC | 7,300 | Large steel plates |
| PSD-6325 | 6,300 × 2,500 | Ø50 | Gantry | Manual / Optional ATC | 11,200 | Extra-large steel plates |
The PSD Series by KOTEC SYSTEM CO., LTD. represents the pinnacle of drilling efficiency, engineered to deliver precision and reliability for the most demanding steel fabrication projects worldwide.
